Description

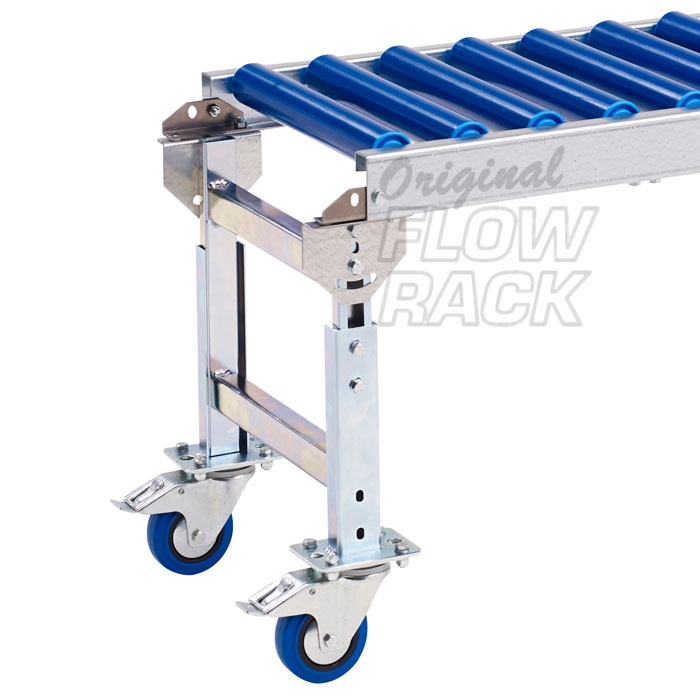

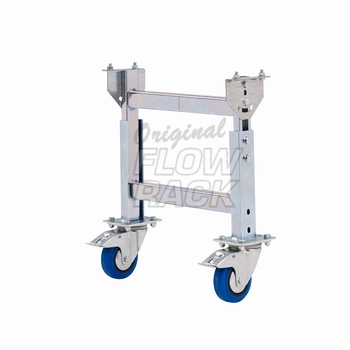

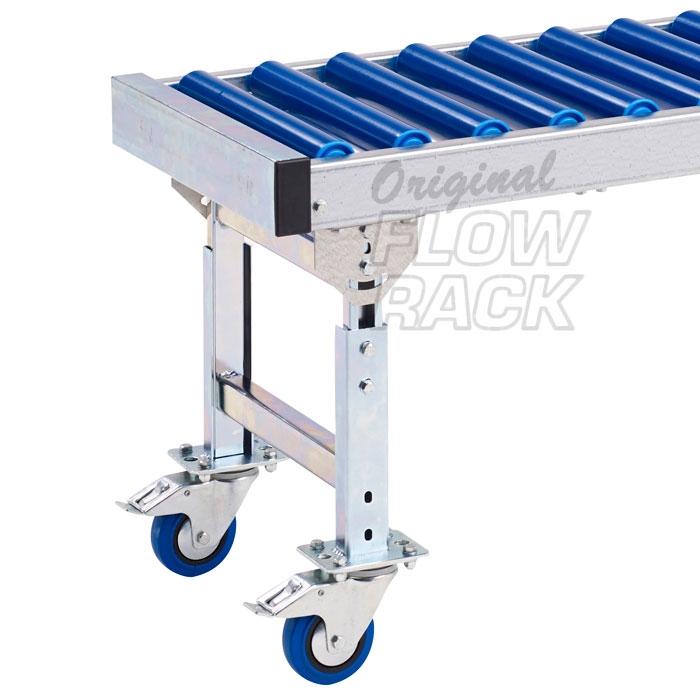

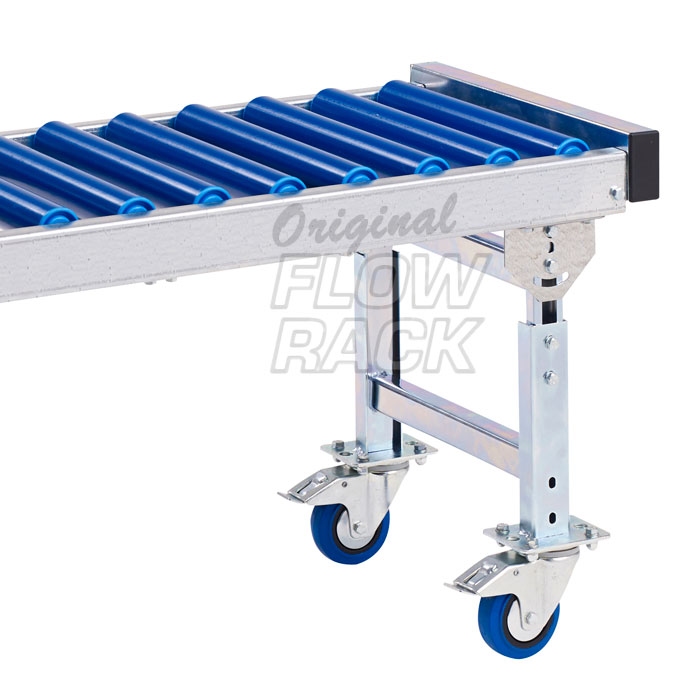

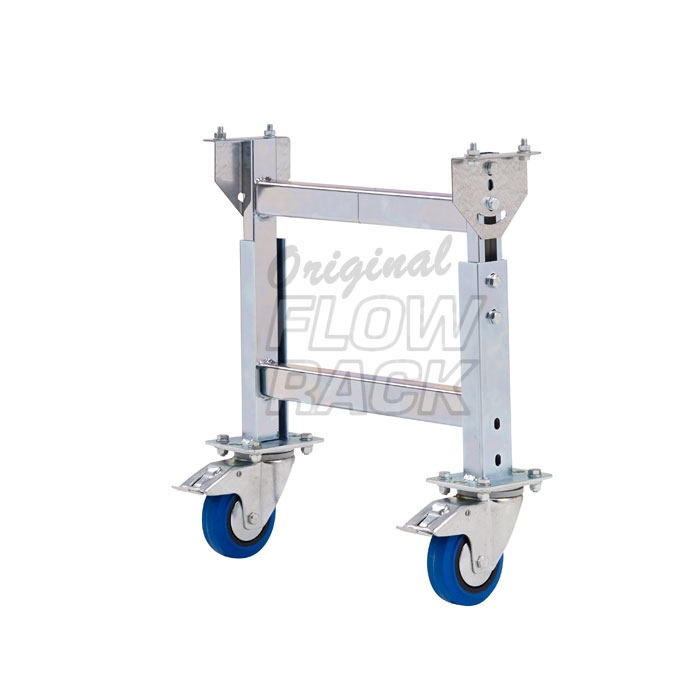

LOW, mobile H-stand for (top of) roller conveyor height 550-700 mm.
Mobile stand with castors for roller conveyors and curves.
Robust version, all parts are made out of galvanized steel.
The stand has 2 heavy castors with (locking) brake.
The height (infinitely) is adjustable
Pre-assembled delivery, factory pre-set at the height you order.
Let us know the roller conveyor height
When ordering, please let us know what roller conveyor height you need (top of roller conveyor)
and we will deliver the pre-assembled H-stand factory pre-set to the specific height.
Standard height range 550-700 mm (top of roller conveyor)
Lower is also possible. We then shorten the stand without extra costs (higher is not possible).
If you cannot give us the height, then you can adjust the stand to your desired height on-site.
The mobile H-stand is then delivered pre-assembled and pre-set at a standard height.
Dimensions & technique
Width 465 mm, height is adjustable 550-700 mm (top of roller conveyor).
Made out of heavy steel profiles, galvanized version.
Can be used as straight (90°) stand or with adjustable angle.
300 kg loading capacity per H-stand (in straight 90° position).
Scope of delivery
1x Mobile H-stand heavy-duty, LOW version.
Including 2 heavy castors (with locking brake) pre-assembled.
Bolts/nuts (M8) for roller conveyor installation.
Still needed
Roller conveyors, curves and possibly end profiles.
