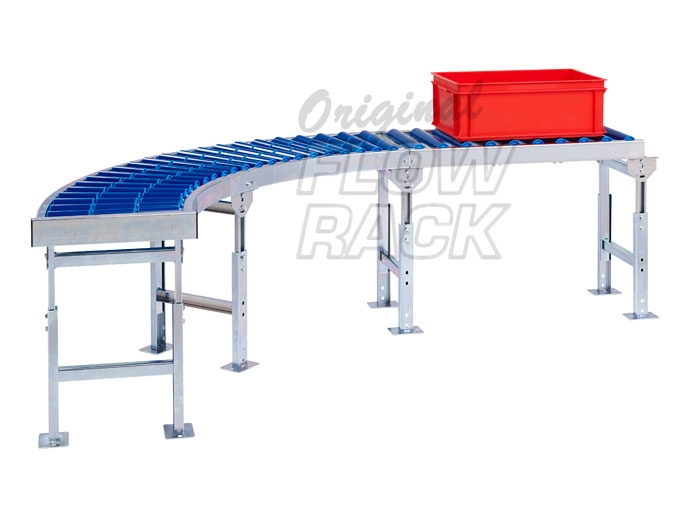

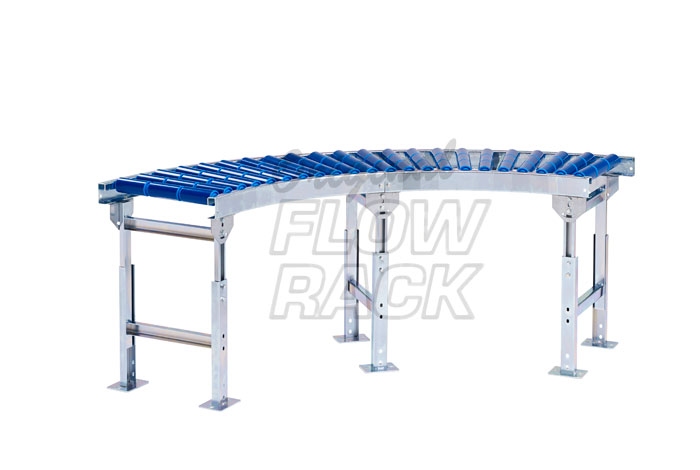

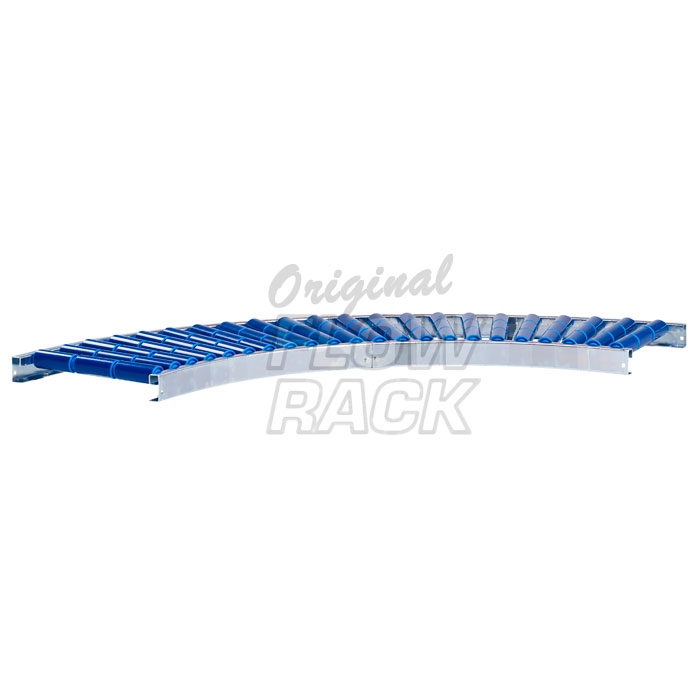

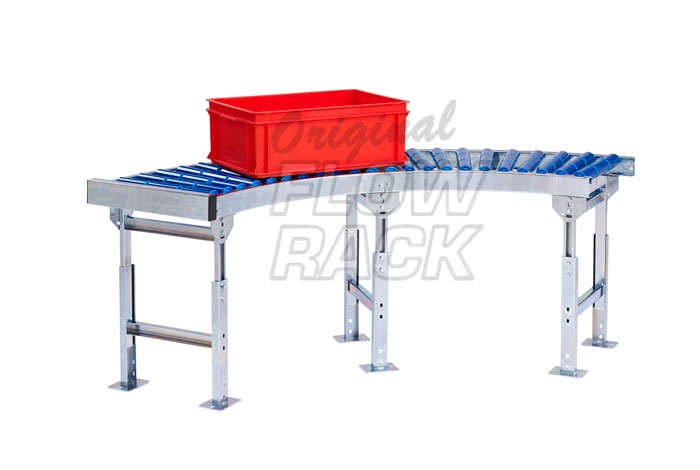

Roller conveyor curve 90-degrees

2-piece curve

Roller conveyor curve 90-degrees
Roller conveyor curve 90-degrees
Roller conveyor curve 90-degrees
Roller conveyor curve 90-degrees
Roller conveyor curve 90-degrees
Roller conveyor curve 90-degrees
Roller conveyor curve 90-degrees
Roller conveyor curve 90-degrees
Temporarily unavailable *Prices are exclusive of VAT
Article code:  464090000
Original Flowrack type PRO+

- 90° Roller conveyor curve
- Special 3-piece curve rollers
- Safely closed curve profile
- Pre-assembled
- Roller length 400 mm
- Roller pitch maximum 92 mm

Detailed info roller conveyors:

Detailed info curve variants:
Description

Durable curve to easily adjust your roller conveyor to your lay-out.
With the 3-piece curve rollers, the box follows the curve easily.

This 90° curve has two 45° curves.

This curve also has a unique locked and safe curve profile.
Pre-assembled delivery.

Dimensions & technique

All parts are made out of galvanized steel.
Curves are attached by H-stands (to each other and to the roller conveyors).

Roller length 400 mm (EL).
Roller pitch, maximum 92 mm c.t.c.
3-piece curve roller ø50 mm, stainless steel bearing balls, colour blue.
Solid 8 mm axle, galvanized.

22 rolls per 90° curve (2-piece), maximum roller weight capacity 15 kg/piece.
330 kg loading capacity per 90° curve (2-pieces)

Scope of delivery

2x 45° curve pre-assembled.
4x coupling brackets (with bolts/nuts).

Still needed

Stands, roller conveyors and possibly end profiles.
